Capacity 10T Rail Transfer Cart With Chain Convey

  • Capacity 10T Rail Transfer Cart With Chain Convey
  • Capacity 10T Rail Transfer Cart With Chain Convey
  • Capacity 10T Rail Transfer Cart With Chain Convey
  • Capacity 10T Rail Transfer Cart With Chain Convey
  • Capacity 10T Rail Transfer Cart With Chain Convey
  • Capacity 10T Rail Transfer Cart With Chain Convey
Lieu d'origine Henan, Chine
Nom de marque BEFANBY
Certification CE,SGS,ISO9001
Numéro de modèle KPX
Quantité de commande min 1 ensemble/ensembles
Prix Négociable
Détails d'emballage Le chariot motorisé sera emballé par la bâche, les pièces seront expédiées dans le boîtier en bois d
Délai de livraison 40-50 jours en tant que livraison habituelle, 30-40days pour la livraison urgente
Conditions de paiement LC, T/T, Western Union
Capacité d'approvisionnement 800 réglés/ensembles, par an
Détails sur le produit
Matériel Q235 Couleur Personnalisé
Application secteur industriel, manutention de tuyaux en acier Vitesse de course 0-20 m/min
Distance parcourue Illimité Garantie 24 mois
Port Qingdao / Tianjin / Shanghai Capacité de charge 1 à 1000 tonnes de charge utile
Type d'opération Pendentif main + télécommande Alimentation Alimenté par batterie
Avantage Plus de 23 ans d'expérience dans le transport de sections de navires entre les bâtiments d'u Puissance facultative alimentation d'énergie de câble, ligne de tramway, rail de basse tension, diesel, etc.
Laisser un message
Description de produit

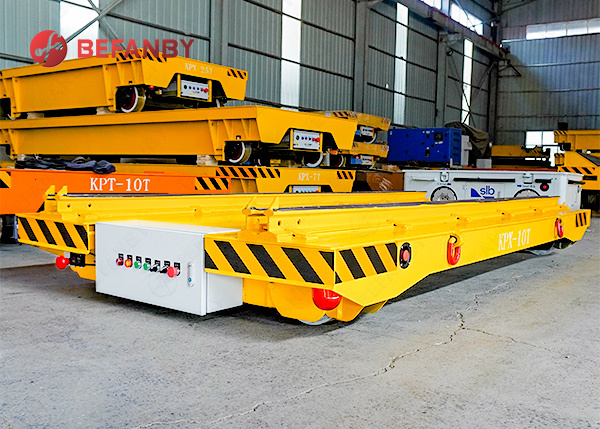

Capacity 10T Rail Transfer Cart With Chain Convey


This battery-powered rail transfer cart utilizes a battery-powered system with a high-efficiency DC drive, operating on fixed tracks and boasting excellent range and low-noise operation. Its robust structure allows for customization of load capacity and platform size to meet the transportation needs of materials of varying sizes. The platform is specially designed with a chain conveyor, enabling automated and smooth workpiece transport, effectively improving overall handling efficiency.

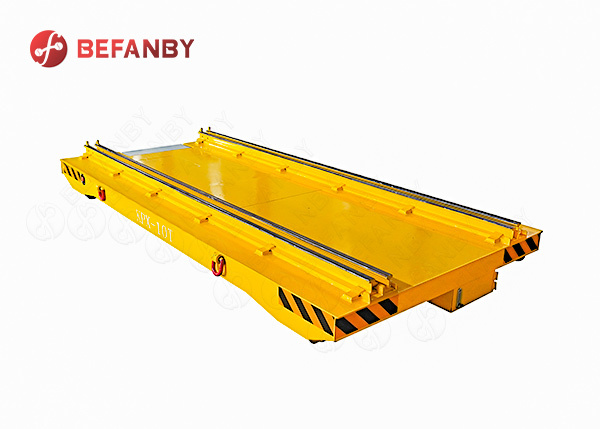

Capacity 10T Rail Transfer Cart With Chain Convey 0

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

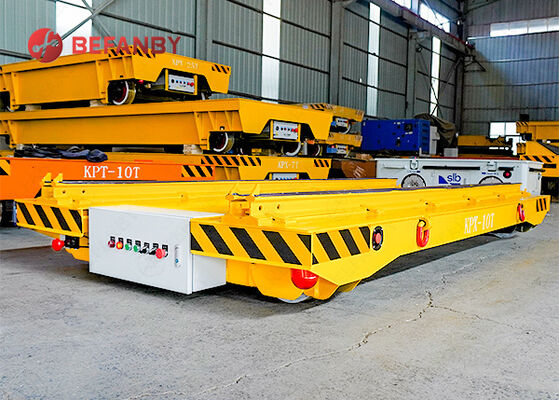

Capacity 10T Rail Transfer Cart With Chain Convey 1

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Detailed Images

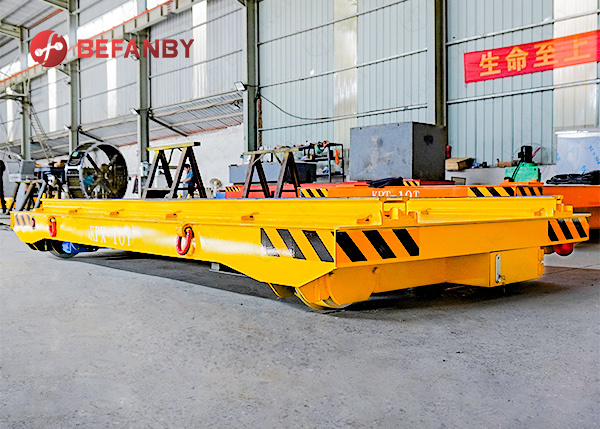

Capacity 10T Rail Transfer Cart With Chain Convey 2


It operates smoothly and adapts to a wide range of working conditions. The transport vehicle utilizes a fixed-rail guidance system that effectively prevents deviation and slippage, making it particularly suitable for fixed-route transport in settings such as production workshops, warehouses, and assembly lines. The design combines cast-steel wheels with a DC motor drive system, ensuring smooth startup, steady-speed operation, and precise positioning—even when fully loaded.
For enterprises frequently transporting heavy workpieces, rail-based transport not only boosts efficiency but also minimizes the risks associated with manual handling, thereby enhancing overall operational safety.

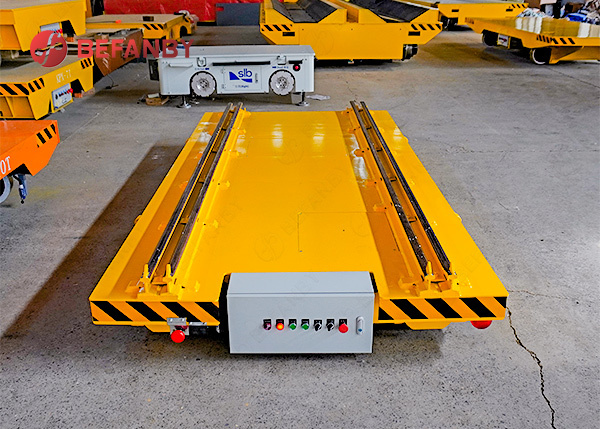

Capacity 10T Rail Transfer Cart With Chain Convey 3

Technique Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8


Our Company

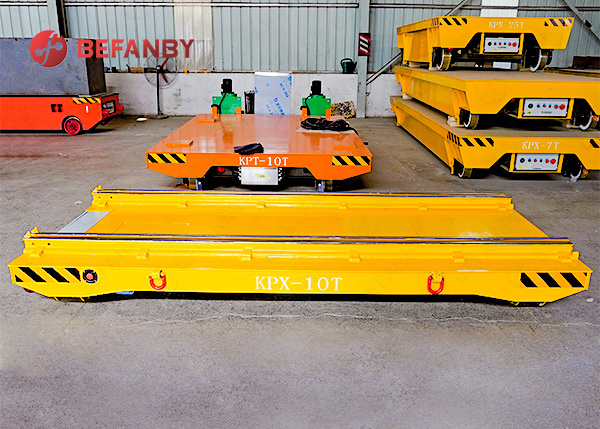

Capacity 10T Rail Transfer Cart With Chain Convey 4

Capacity 10T Rail Transfer Cart With Chain Convey 5

Capacity 10T Rail Transfer Cart With Chain Convey 6

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
