Customizable Tabletop Function Rail Transfer Cart With Cable Reel Power
| Lieu d'origine | Henan, Chine |
|---|---|
| Nom de marque | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Numéro de modèle | KPJ |
| Quantité de commande min | 1 ensemble/ensembles |
| Prix | Négociable |
| Détails d'emballage | Le chariot motorisé sera emballé par la bâche, les pièces seront expédiées dans le boîtier en bois d |
| Délai de livraison | 40-50 jours en tant que livraison habituelle, 30-40days pour la livraison urgente |
| Conditions de paiement | LC, T/T, Western Union |
| Capacité d'approvisionnement | 800 réglés/ensembles, par an |
Détails sur le produit
| Matériel | Q235 | Couleur | Personnalisé |
|---|---|---|---|
| Application | secteur industriel, manutention de tuyaux en acier | Vitesse de course | 0-20 m/min |
| Distance parcourue | Illimité | Garantie | 24 mois |
| Port | Qingdao / Tianjin / Shanghai | Capacité de charge | 1 à 1000 tonnes de charge utile |
| Type d'opération | Pendentif main + télécommande | Alimentation | Alimenté par batterie |
| Avantage | Plus de 23 ans d'expérience dans le transport de sections de navires entre les bâtiments d'u | Puissance facultative | alimentation d'énergie de câble, ligne de tramway, rail de basse tension, diesel, etc. |
Description de produit

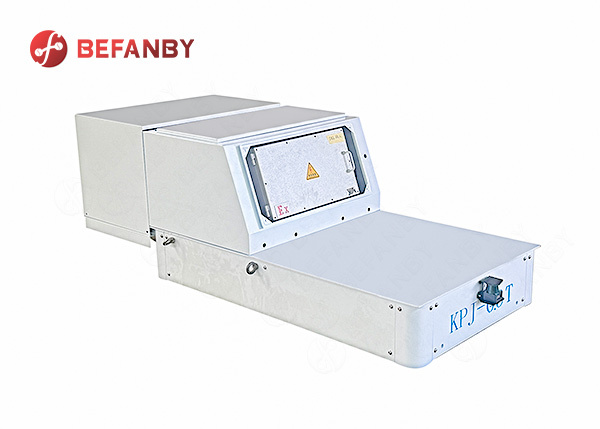

Customizable Tabletop Function Rail Transfer Cart With Cable Reel Power
This rail-mounted transport vehicle utilizes an automatic cable reel power supply system, ensuring a continuous and stable power supply and effectively guaranteeing continuous operation on the rails. The vehicle boasts a compact and robust structure, smooth operation, and is suitable for medium- to long-distance, high-frequency material handling, offering excellent safety and durability. This equipment can be flexibly customized in terms of load capacity and platform structure to meet the needs of different production lines and workshop layouts. It is widely used in mold workshops, machinery manufacturing, assembly lines, and heavy material handling scenarios, providing an efficient solution for achieving rail-based logistics transportation within factories.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

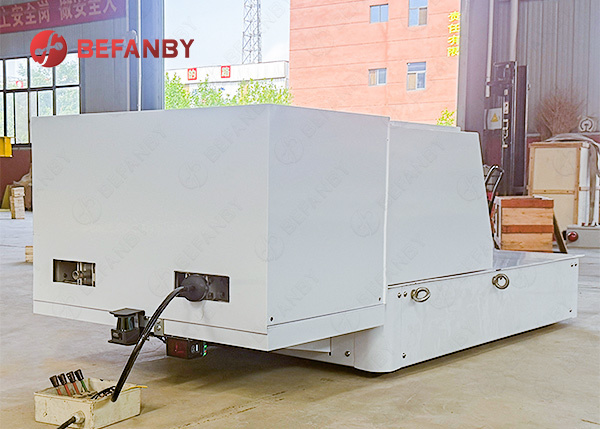

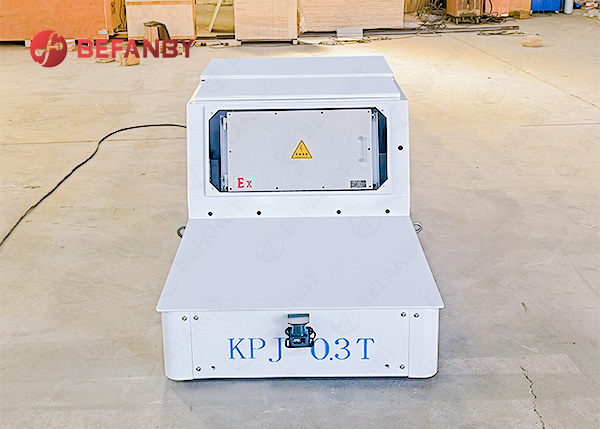

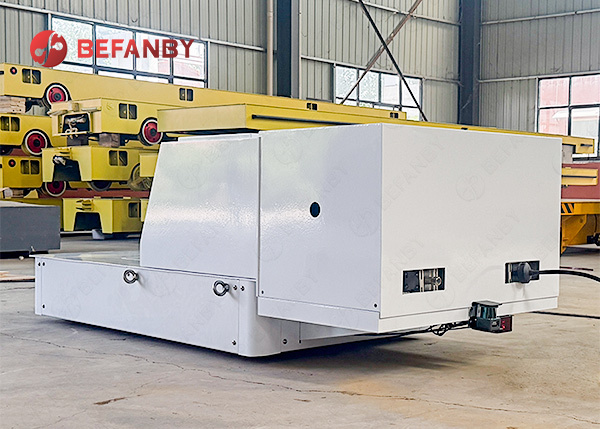

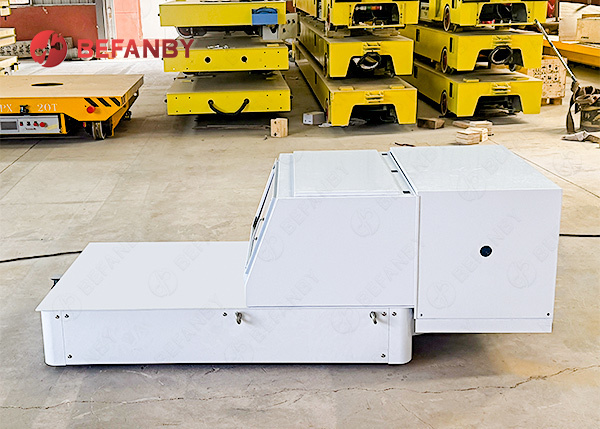

Detailed Images
Cable reel-powered rail-mounted transfer carts are widely used in machinery manufacturing, mold processing, steel metallurgy, warehousing and logistics, and production line material handling due to their stable power supply and simple maintenance costs. Especially in workshop environments with fixed tracks and well-defined routes, they enable efficient transportation of large workpieces, steel structures, molds, and equipment components, providing reliable support for internal logistics.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Our Company
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
