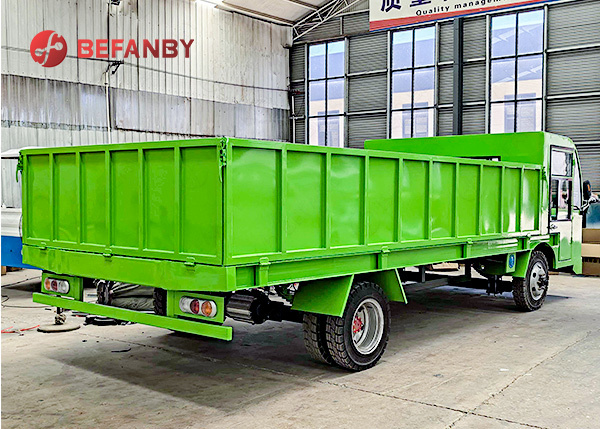

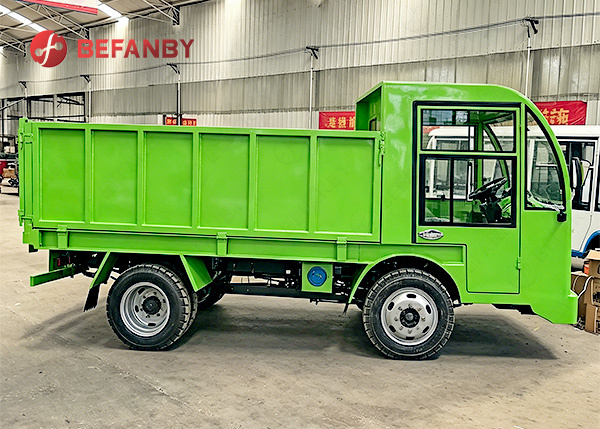

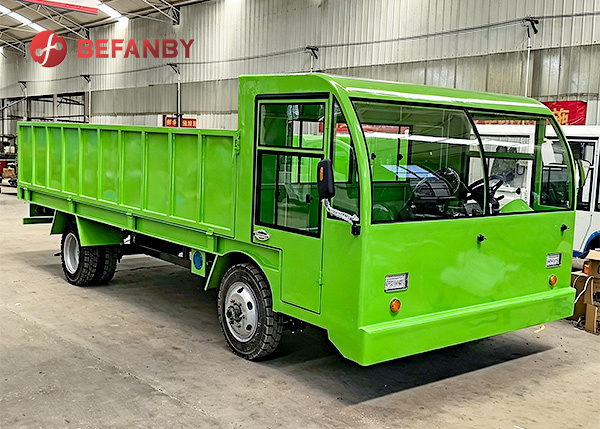

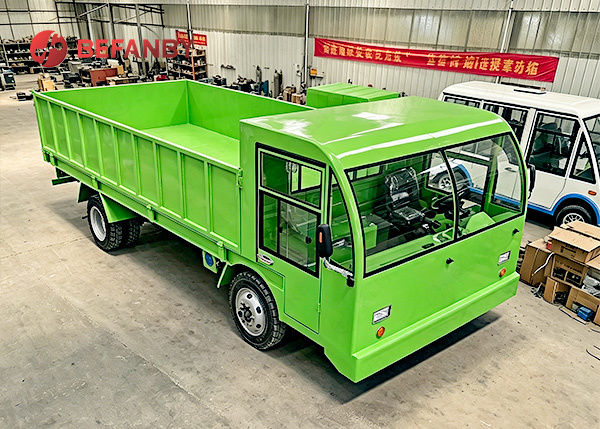

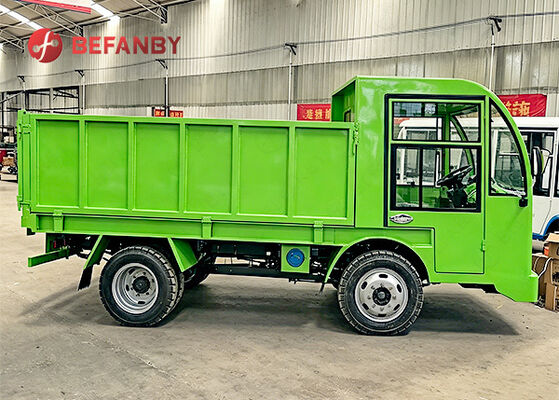

Customized Tackless Material Transport Trolley With Steering Wheel
| Lieu d'origine | Henan, Chine |
|---|---|
| Nom de marque | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Numéro de modèle | KPD |
| Quantité de commande min | 1 ensemble/ensembles |
| Détails d'emballage | Le wagon de transfert sera emballé par la bâche, les pièces seront expédiées dans le boîtier en bois |
| Délai de livraison | 20-30 jours comme d'habitude |
| Conditions de paiement | LC, T/T, Western Union |
| Capacité d'approvisionnement | 1000 ensembles par an |
Détails sur le produit
| Matériel | Q235 | Capacité de charge | 1-70T |
|---|---|---|---|
| Alimentation | puissance des bobines de câble | Taille du tableau | Longueur (L) : 2000-5600, Largeur (L) : 1500-2500, Hauteur (H) : 450-750 |
| Diamètre de roue | 270-600 | Vitesse de course | 0-25 |
Description de produit
Customized Tackless Material Transport Trolley With Steering Wheel
1. Product Introduce
This material transport trolley features a steering wheel control design, differing from previous models in its overall operation. It offers flexible operation and precise steering, making it particularly suitable for large material transfer needs in factories, workshops, and complex working conditions. Compared to traditional handling equipment, its control method is more intuitive, providing greater convenience for operators.
The trolley supports multi-dimensional customization, allowing for flexible design of body size, load capacity, and platform structure based on actual usage scenarios. Whether it's long steel, mold equipment, or coiled materials, a dedicated platform design can be created. It can also be equipped with guardrails, fixed supports, V-shaped coil racks, or anti-slip panels to ensure stable and reliable transportation.
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 20 years' experience in the material handling fields.
2. Advantage
Furthermore, this transport vehicle supports color customization and corporate logo painting, allowing for unified color schemes according to customer factory standards, enhancing overall visual consistency and corporate image. For safety, optional emergency stop devices, audible and visual alarms, and anti-collision buffer systems are available to further ensure operational safety.
3. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transport car; KPX series is a battery electric motorized rail transport car; KPJ series is a cable reel powered transport car; KPT series is a tow cable powered electric transport car; KPC series is a safe sliding line Powered electric transport car.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
Applications
BEFANBY Client
Our Company
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
